TAM

Application

• Adapter module Type TAM for the expansion of the EASYLAB system
• Interface between fume cupboard control and room control
• Interface to the central BMS, voltage signals 0 – 10 V or with expansion modules for LonWorks, BACnet, Modbus
• Very simple commissioning: automatic controller identification, no component addressing required (plug and play communication), configuration software with interactive menu navigation and extended diagnostic functions
• Project-specific configuration using expansion modules and room control panels
• Numerous options for the integration of additional volume flows into the room balance
• Room management function (RMF) can be activated
• For use in laboratories, clean rooms in the pharmaceutical and semiconductor industries, operation theatres, intensive care units, and offices with very demanding control requirements

Special characteristics

• Plug and play communication with automatic controller identification, no component addressing required
• Modular system for functional expansion
• Connections and status displays on the outside of the controller casing
• Project-specific adjustments using adaptable room control panels
• Project-specific adjustments can be achieved with configurable special functions, monitoring, and alarm signalling
• Permanent function monitoring of the system
• Very simple commissioning, configuration changes and diagnosis
• Centralised configuring and permanent signalling of room settings (room management function)
• EasyConnect configuration software enables interactive navigation (also wireless)
• Factory tested and configured with project-specific parameters

Operating modes

• LAB: extract air led system for laboratories
• CLR: supply air led system for clean rooms
• LAB/CLR-RMF: System with active room management function

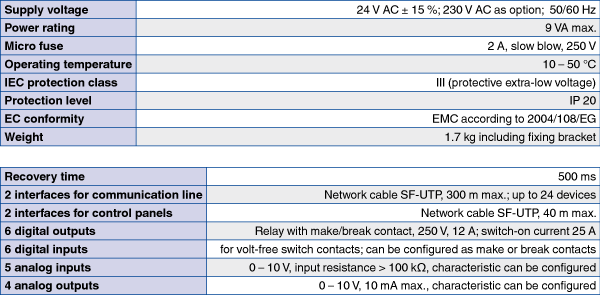

Parts and characteristics

• Microprocessor system with programme and system data stored in nonvolatile memory
• Double-stack terminal block for supply voltage connection
• Connections for two control panels
• Connection of communication line to plug socket or screw terminals
• Digital outputs with screw terminals
• Digital inputs with screw terminals or plug socket
• Analog inputs with screw terminals or plug socket
• Analog outputs with screw terminals
• Integral terminal resistor for the communication line
• Alarm indicator lights on both sides of the casing
• Status indicator lights (heartbeat, communication and terminal resistor)

Attachments

Expansion modules are factory mounted or can be fitted at a later stage

• T: EM-TRF, power supply unit for connecting the controller to the 230 V AC mains voltage
• U: EM-TRF-USV, power supply unit for connecting the controller to the 230 V AC mains voltage and to ensure uninterrupted power supply
• L: EM-LON, LonWorks FTT-10A interface
• B: EM-BAC-MOD-01, interface configured for BACnet MS/TP
• M: EM-BAC-MOD-01, interface configured for Modbus RTU

Useful additions

• BE-LCD-01: Control panel for fume cupboard control and room control (only for operating mode ...-RMF)
• Differential pressure transducers: Static differential pressure transducers for room pressure control or duct pressure control
• EasyConnect: Configuration software for the commissioning and diagnosis of EASYLAB components

Construction features

• Main PCB and expansion modules in one casing
• Angle bracket for fixing the casing in a switch cabinet or to a wall or ceiling
• Casing can be opened without tools, except for TAM with EM-TRF or EM-TRF-USV
• Pin header socket for the connection of expansion modules
• Plug sockets for the most important connections on the outside of the casing

Materials and surfaces

• Casing made of ABS plastic, blue (RAL 5002)
